The use of high purity active compounds is a key requirement in all therapeutic applications.

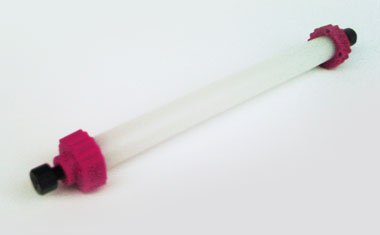

ReliChrom™ pre-packed columns have been developed by Resindion to provide a practical and reliable tool for the screening of its ReliSorb™SS highly porous polymeric matrices for chromatographic bioseparations.
ReliChrom™ columns have been conceived for a possible direct connection to almost all standard LC and HPLC systems through UNF 10-32 male (1/16’’ male) fittings. Each column contains 5 ml of packed resin and the resin bed height is 100 mm. These dimensions represent an optimal solution for the development of optimized purification methods and offer the possibility to increase the capacity by the connection of two columns in series.
ReliChrom™ column hardware is designed for a max operating pressure of 30 Bars (430 psi) and for a 5 - 60 °C temperature range in operation.
Overall column dimensions are 11.5 mm (8 mm ID) x 135 mm (100 mm HR) and each column is equipped with 17 µm frits.
All the components of ReliChrom™ columns are made of polymeric materials: polypropylene (PP) and high density polyethylene (HD-PE).
